Electric mortise lock series

Accessories

Installation Instruction

Electricity mortise lock feature Wire Map
电插锁系列
PHOTO type

product name

parameter

function
2 core electric mortise lock WX-E02
Ordinary 2 line electric mortise lock (normal temperature electric plug lock)

Products:
Operating voltage: 12VDC
Starting current: 0.45A
Continuous current: 0.45A
Rated power: 5.4W
Size: 204 × 34 × 40mm
180 is particularly suitable for opening doors glass containing
Security Type: power locks, power lock

Embedded installation, beautiful appearance. Combined with electronic, mechanical, and mechanical principles of design and production, to achieve low current operation, thereby reducing the failure rate, repair rate.
Frameless glass doors selectable frame supporting the fear aid installation

Room temperature electric mortise lock
Delay electric mortise lock WX-E02D The low temperature delay electric bolt lock
First, the product parameters
Security Type: Automatic lock off
Lock Size: 200 × 35 × 40 (mm) (205 * 35 * 44MM)
Short board dimensions: 90 × 25 × 2 (mm)
Cylinder Dimensions: 16mm diameter protruding length x16mm
Operating voltage: 12VDC + 10% range
Starting current: 900mA (start instantly)
Operating Current: 100mA (completely unlocked)
Delay function: 0 / 2.5 / 5 seconds
Cylinder strength: polished stainless steel to withstand 800kg pressure
Selection: Wooden door, glass doors, metal doors, fire doors
Surface temperature: room temperature
Induction Distance: 8mm
Ambient temperature: -10 ~ + 25 ℃ (14 ~ 131F)
Humidity: 0 ~ 90% relative humidity
Durable Design: Professional design of electromagnetic materials, 500,000 times the durability of
Panel design: high-strength aluminum alloy, Japan crushed grain processing
Durable Design: Professional design of electromagnetic materials, 500,000 times the durability of
Material Design: high-strength aluminum alloy, Japan crushed grain processing
Delay locked
The magnetoelectric door latch WX-E05 5 wire door sensor signal power locks
Delay low power locks
First, the product parameters
Security Type: Automatic lock off
Lock Size: 200 × 35 × 40 (mm) (205 * 35 * 44MM)
Short board dimensions: 90 × 25 × 2 (mm)
Cylinder Dimensions: 16mm diameter protruding length x16mm
Operating voltage: 12VDC + 10% range
Starting current: 900mA (start instantly)
Operating Current: 100mA (completely unlocked)
Delay function: 0 / 2.5 / 5 seconds
Signal output: COM NO NC
Cylinder strength: polished stainless steel to withstand 800kg pressure
Selection: Wooden door, glass doors, metal doors, fire doors
Surface temperature: room temperature
Induction Distance: 8mm
Ambient temperature: -10 ~ + 25 ℃ (14 ~ 131F)
Humidity: 0 ~ 90% relative humidity
Durable Design: Professional design of electromagnetic materials, 500,000 times the durability of
Panel design: high-strength aluminum alloy, Japan crushed grain processing
Durable Design: Professional design of electromagnetic materials, 500,000 times the durability of
Material Design: high-strength aluminum alloy, Japan crushed grain processing
Feedback signal power locks
Narrow edge electric mortise lock WX-EZ05 Narrow edge electric mortise lock With 5 line delay magnetic door at low temperature

Product Parameter

parametric description
security type Power automatic unlock
Lock body size 长204x宽28x厚37(mm)
Board size 长100x宽25x厚3(mm)
Lock size 17mm凸出长度x13mm直径
working voltage 12VDC+10%范围(24VDC可订)
starting current
900mA(Start the moment)
operating current 120mACompletely locked)
lock core strength Hardened stainless steel solid lock core, under 1000 kg
Choose the door type Wooden door, glass door, metal door, PVC door

product weight

0.68kg
Narrow edge electric mortise lock Door magnetic signals
Key electric plug lock WX-J02 Mechanical electric mortise lock
Contains the door open or closed state detection output contact (250mA: NC / NO. )
Especially suitable for 180 ° opening door. Stainless steel lock heart can withstand more damage to shear up to 1200Kg. Has long unlocked state functions. Built-in mechanical lock core auxiliary unlocking device, a power outage or emergency situation by doing mechanical lock core unlocking action. Containing optically coupled input button to open the door contact, did not open the door within such five seconds will then automatically locked. Operating Temperature 0 ~ 90 ℃ Humidity 85% Rh max.
Size:
Body size: 200mm (length) x 32mm (W) x 46mm (D)
Lock Heart Cover: 90mm (length) x 26mm (W) x 2.5mm (thickness)
Lock Heart Size: 17mm (protruding length) x 15.5mm (diameter)
Weight: 1100g Certification: CE
Electricity mortise lock with keys
Electric lock | power is locked WX-D05 Lock off
5 Line Magnetic Electric Bolt Lock
Operating voltage: 12VDC + 10% range
Starting current: 900mA (start instantly)
Operating Current: 120mA (completely unlocked)
Security Type: Power to unlock / lock off
Cylinder strength: hardened stainless steel solid cylinder, bear 1000kg impact
Selection: Wooden door, glass doors, metal doors, PVC doors
Signal Output: Door status reconnaissance signal output NC, COM contacts
Lock body surface temperature: Low temperature
Door magnetic induction distance: 8mm
Ambient temperature: -10 ~ + 55 ℃ (14 ~ 131F)
Humidity: 0 ~ 90% relative humidity
Power locks and durable design: Professional design rugged durability, 500,000 times qualified
Design panel material: high strength stainless steel, Japan crushed grain processing
Product weight: 0.676kg
Lock off
Power to unlock

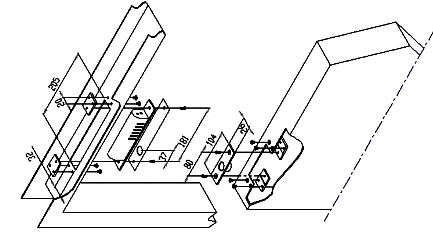

Power locks installation diagram
电插锁
电插锁木门安装图片
电插锁安装尺寸 单门玻璃门安装图片
无框门夹电插锁
有框门电插锁
电插锁安装方式
